2016+ Camaro Uplevel Instrument Cluster Upgrade Kit

(2 customer reviews)



IMPORTANT NOTE: We realize there is a lot to read here but it’s in everyone’s best interest to read all of the information presented here. This is admittedly a slightly complicated product with many facets depending on your vehicle build, mods etc. We have tried to make this as comprehensive and easy to understand as humanly possible but if we missed something please drop us a line and ask!

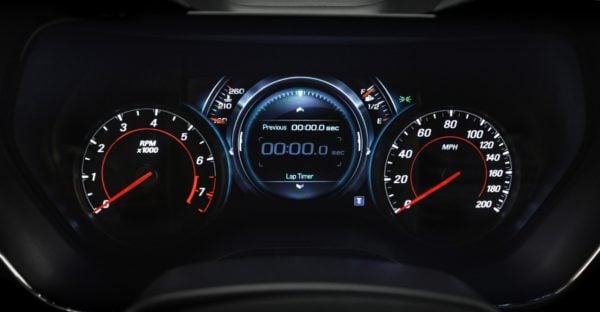

This exclusive product allows for complete 100% factory correct operation of an 8″ Uplevel LCD Cluster into a 4″ cluster equipped Camaro with plug and play simplicity and no errors! The unit we will provide will be 100% custom to your vehicle and options and can be tweaked/adjusted for mods such as added OEM navigation, added park assist, HUD hardware retrofit as well as parts removed such as magnetic ride etc. The best part is they are BRAND NEW with warranty.

If you have a 2019+ please note that in order to Utilize the Music, Navigation (if Equipped) and Phone menus you will need to have an IOS or IOT radio; the IOR does not have the capability to drive those menus. IOS/IOT Equipped vehicles are plug and play and do not require any additional wiring to utilize all features!

Please Note: These ARE special order and subject to current lead time.


Q: How does this work?
A: First figure out your application (E.G. Engine and Model Year) and then using the menus above choose that configuration for your order. Upon delivery (and after installing the required wiring harness if necessary) simply plug the unit in and you’ll be golden; yes it’s really that simple.

Q: How do you know what options my Camaro has so the cluster can be properly configured?
A: From your VIN! If you have added any factory options you think the cluster should display or interact with just put them in the order notes.

Q. I heard you need to add a small plug and play wiring harness for IO5/IO6 equipped vehicles is that true?
A. Yes, these vehicles are missing some of the wiring to drive the cluster; this harness is available from Gen5DIY.com.

Q: Whats the difference between the I4/V6 and V8 units?
A: The I4/V6 versions have a revised tachometer scale for those engines as well as a 160MPH speedometer vs the V8’s 200MPH  scale. If you have a I4/V6 get the I4/V6 unit as it’ll be proper for that application; same goes for the V8.

Q: I have a 2017+ LTG and the boost gauge doesn’t move is this normal?
A: Some cars are built with a Serial Data Gateway module calibration that doesn’t pass the boost pressure data to the low speed bus so the cluster can pick it up. We are investigating a work around for this currently.

Q: Can you do this for Export (Metric clusters)?
A: Yes we can supply them and will eventually add them to the drop down menu but for now just email and ask for your specific application and we will get you setup.

Q: Does it HAVE to be the same model year of cluster as my Camaro?
A: If you wish to have 100% OEM functionality AND retain your factory or factory backed extended warranty you MUST choose the same model year cluster as your Camaro. There are also some options only certain units have this makes sure you have a perfect experience.

Q: I have an IOB Radio will this cluster work in my application?
A: Yes with some caveats. It will “work” however you will not see any audio information and if you have an IOB with steering wheel radio/audio controls you will lose those. Most people get this upgrade to use when replacing the IOB radio. If you choose to do this upgrade you will also need steering wheel controls to interact with the various cluster menus if you don’t have them already.

Q: Will I lose any features?
A: No you should not lose any features that you had before other than the IOB steering wheel control situation above.

Q: Will I gain any features?
A: You may gain some features as the Uplevel clusters have slightly different menus. We can also enable things you have added such as indicators for park assist or the Navigation menu if you have added factory navigation. If you have added FACTORY options that your Camaro didn’t have please put what you have added in the notes section.

Q: Can you delete warning indicators for items I may have removed from the Vehicle??
A: Yes we can, this would all be custom and priced as such, contact us for details.

Q: What is the HUD Retrofit Option?
A: This enables the unit to drive a heads up display module. Yes it can be installed after the fact and requires wiring obviously. We do not provide support for this we simply enable the unit to drive the HUD module as factory, wiring, installation etc is up to the end user.

Q: Do I need to send in or do anything with my factory cluster?
A. Nope! But we do recommend keeping it in case you sell your vehicle. The OEM crates these come in are a great place for them!

2 reviews for 2016+ Camaro Uplevel Instrument Cluster Upgrade Kit

  1. Israel Perez (verified owner)

    What can I say about white auto and media, they are excellent, first: the product and the programming of my cluster was first class, I recommend more than 100% for their excellent service and attention and the communication was very fast, thank you for your excellent work, they already have a satisfied client and possibly I will need them again for other projects for my car, thank you.

  2. taizmo (verified owner)

    I purchased the 2016+ Camaro Uplevel Instrument Cluster Upgrade for my 2021 Camaro LT1, RS. This was a great upgrade to SS style gauges. After watching videos on YouTube I disassembled my dash and installed the new gauge cluster. I rate this product as excellent and give it five stars!
    It was an easy install! Everything worked and I couldn’t be more satisfied. These guys have a great product. It was packaged well and arrived within about a week. Make this your first choice of any upgrades to your LT1.
